Choosing a dust extractor: CFM, water lift and hose losses

Identify the material and task before the vacuum

Concrete grinding, wood machining, metal dust and general cleanup are not interchangeable applications. Determine what the material contains, what the process releases and which rules apply. Do not use an ordinary shop vacuum for hot, combustible, toxic or unidentified dust merely because a hose fits the tool.

This guide focuses on buying questions, with a specific US construction-silica example. It does not design a dust-control system or certify compliance. A competent safety professional should resolve hazard classification, required controls and equipment suitability for the actual workplace.

How capture, transport and filtration work together

At the tool, a shroud tries to intercept particles before they disperse into the breathing zone. Inside the hose, moving air transports captured material. At the extractor, separation and filtration retain that material. Each stage can fail independently: a perfect filter cannot repair a leaking shroud, and high flow at the inlet cannot make an unsuitable dust container safe.

Capture velocity describes air motion where a contaminant enters the control zone. Duct velocity describes movement inside a hose or duct. These are not interchangeable values. The HSE ventilation glossary distinguishes the functions of hoods, ducts, air cleaners and performance indicators. Its terminology is useful engineering background; the workplace rules discussed later are US construction requirements.

CFM versus water lift: why both are listed

CFM is volume flow. Water lift expresses suction pressure as an equivalent water-column height. A high water-lift value indicates pressure capability, not how many cubic feet pass through a connected hose. At a sealed inlet, the system can develop a high vacuum while useful flow approaches zero. At a low-resistance inlet it can move more air at a smaller pressure difference. A working hose and shroud place it between those extremes.

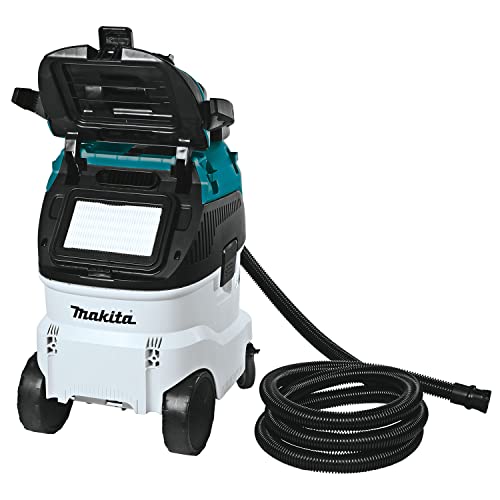

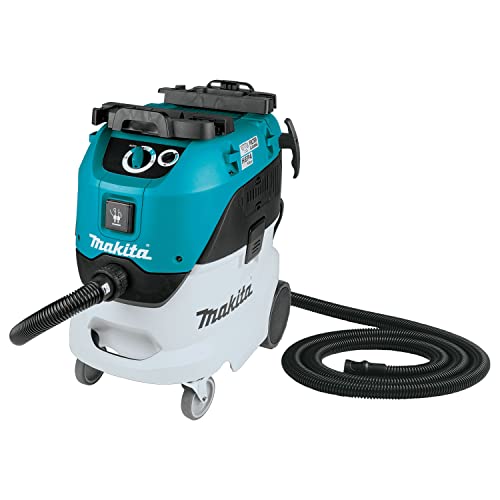

For a catalog-connected example, Makita’s VC4210L technical sheet lists 148 CFM and 92 inches of static water lift. They are separate ratings, not a promise of 148 CFM while sustaining 92 inches of water through an arbitrary hose. The same sheet describes automatic filter cleaning. That feature addresses accumulation on filters; it does not prove adequate flow for every tool or material.

Use the numbers to identify the machine, then ask for the supported tool combination and rating conditions. The same distinction appears at larger scale in fan performance at static pressure, although a room-circulation fan is not a substitute for a dust extractor.

Check the complete extraction system

A high free-air CFM number does not prove the required capture flow at the shroud through a long hose and loaded filter. Ask for the manufacturer’s compatible combination and operating instructions, not isolated component claims.

Worked example: a larger hose changes velocity, but flow is not fixed

Assume, solely for arithmetic, that 100 CFM actually reaches a circular hose. A 2-inch internal diameter has an area of about 0.0218 ft², giving a mean velocity of approximately 4,580 ft/min. A 1.25-inch hose has an area of about 0.00852 ft², giving approximately 11,735 ft/min at the same assumed flow.

This does not mean the smaller hose improves dust control. The extractor may not maintain the assumed 100 CFM against its greater resistance. Actual flow depends on the machine curve and losses through the entire assembly. Nor does lower resistance prove that a larger hose preserves the particle-transport conditions required by the tool maker. Keep the approved diameter and length, and ask for supporting performance data before modifying either.

Flexible corrugations, adapters, tight bends and accumulating dust add further resistance. Counting hose length alone misses these effects. In its archived tuckpointing engineering guidance, NIOSH describes the importance of a compatible shroud, hose and vacuum, and using a preseparator to protect filter flow. Its older study configurations must not replace the current task-specific OSHA requirements below.

OSHA airflow requirements for the handheld-grinding task below

OSHA’s fact sheet for handheld grinders used for tasks other than mortar removal describes a dust-collection option with a suitable shroud, at least 25 CFM per inch of wheel diameter, a filter with at least 99% collection efficiency for respirable-sized particles, and a cyclonic preseparator or filter-cleaning mechanism. A five-inch wheel therefore corresponds to 125 CFM in that specific example.

This is not a sizing rule for all grinders, saws or drills. The construction silica standard’s Table 1 contains task-specific controls and respiratory-protection conditions. Indoor versus outdoor use and work duration can change the requirements. Read the complete applicable row and associated provisions; do not use the calculation alone as a compliance checklist.

Airflow example: 5-inch and 7-inch grinding wheels

Using only the scoped 25 CFM/inch requirement already described: a 5-inch wheel corresponds to 125 CFM, while a 7-inch wheel corresponds to 175 CFM. The Makita sheet’s headline 148 CFM is below 175 CFM; that listing therefore does not establish a suitable 7-inch configuration under this criterion. It is above 125 CFM, but numerical headroom alone still does not establish a compliant five-inch system.

Why not? The exact task, shroud, operation and maintenance, filter and cleaning provisions, and any respiratory-protection requirement remain unresolved. A comparison that labels a vacuum “OSHA compliant” solely because 148 exceeds 125 discards most of the actual decision. Have the competent person review the complete applicable control method before use.

Filtration is necessary, but capture comes first

A filter can only act on dust that enters the system. A damaged shroud, detached hose or clogged flow path can leave material airborne before it reaches the filter. Conversely, strong suction with an unsuitable filter or disposal method can create another exposure pathway.

Ask how the extractor maintains airflow as dust accumulates and how the operator checks it. Confirm the correct replacement filter, collection bag and cleaning procedure. Generic bags or filters that physically fit may not preserve the specified system performance. Do not infer explosion protection or suitability for sparks from a HEPA claim.

Troubleshoot declining dust pickup

HSE’s HSG258 treats commissioning, documentation and ongoing checking as part of effective local exhaust ventilation. For procurement, this suggests a useful handover requirement: obtain an approved configuration and baseline performance indication, so later deterioration is recognizable. Do not use an uncalibrated phone sensor or the sound of the motor as proof of safe capture.

Think through a normal shift

List the tools in use, duration, working positions and access. A heavy extractor that cannot follow the work may invite improvised hose extensions or disconnected operation. A small container that fills repeatedly may create frequent handling and disposal tasks. These are practical selection issues, not reasons to bypass the required controls.

Plan electrical supply, trip hazards, transport and maintenance access. Ensure operators know when to stop for a blocked hose, damaged shroud, filter warning or visible escape of dust. Cleaning the surrounding area also needs an appropriate method; controlling the active cut does not automatically address settled dust.

Questions beyond the HEPA label

Ask for a supported combination

• Exact tool and shroud part numbers for the identified task.
• Permitted hose diameter/length and connection arrangement.
• Required airflow and the method for verifying performance in use.
• Filter specification, cleaning mechanism and replacement parts.
• Collection and disposal method for the actual material.
• Maintenance schedule, inspection instructions and application restrictions.
• Review against the applicable workplace rules and exposure-control plan.

Compare other shop equipment through the air-system guide, but do not substitute general room fans for local dust capture. The distinction between circulating air and exhausting or capturing contaminants is explained in the fan-selection guide.

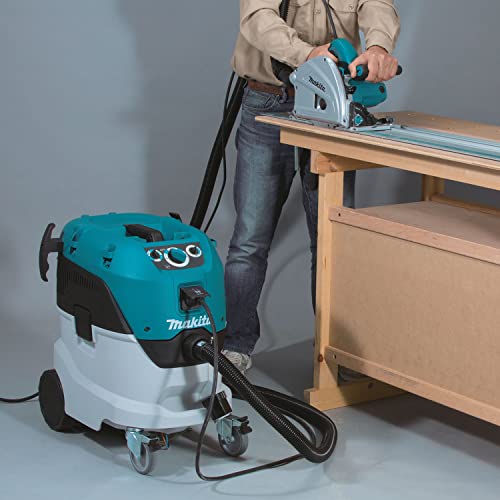

Catalog scope: The linked Makita extractor is a catalog example, not a determination that it meets the cited OSHA task requirements with your tool, hose and shroud. Verify the complete supported system and application.
