Air compressor sizing: CFM, pressure loss and tank reserve

Calculate tool demand and tank reserve, then check whether low pressure comes from limited airflow or a restriction in the line.

9 min read

Ingersoll Rand two-stage air compressor with vertical receiver tank
Ingersoll Rand two-stage compressor. Delivered airflow, operating pressure and receiver storage answer different questions. View equipment. Catalog photograph.

At a glance

Size delivered airflow at the required pressure for the tools that run together. Measure pressure at the operating tool, then calculate how long receiver storage can cover a temporary shortfall. Sustained demand still has to stay within the compressor’s continuous capacity.

  • Loaded CFM, average CFM and tank gallons answer different questions.
  • Compare pressure at the receiver and point of use while air is flowing.
  • Tank reserve depends on the usable pressure band and the demand minus supply.
View sources ↓

What PSI, CFM and tank size tell you

PSI measures pressure; CFM describes delivered airflow at a stated pressure; tank gallons describe receiver volume. A high maximum PSI, large tank and impressive horsepower label can still accompany a compressor that cannot keep up with a continuously used tool.

Start from the tool manual. Record loaded air demand and required pressure, then describe how long the tool operates and which other tools may run at the same time. CAGI’s sizing brief distinguishes average intermittent consumption from continuous loaded consumption. Treat a seller’s “average CFM” cautiously when planning a sander or another sustained load.

Size from the tool backward

  1. 01Loaded tool demand
  2. 02Concurrent users
  3. 03Pressure + treatment losses
  4. 04Compressor + receiver
A compressor sizing sequence; no universal safety factor is implied.

SCFM, delivered CFM and displacement: compare the same quantity

Air compresses, so a cubic foot inside a pressurized receiver contains more air mass than a cubic foot at atmospheric pressure. A free-air or standardized flow expresses that mass flow as an equivalent volume at stated reference conditions. Actual CFM refers to volume at the conditions where it is measured. The letters alone are not a complete test specification: temperature, pressure, humidity and the measurement method belong with the number.

For example, do not compare a tool’s free-air consumption with a pump’s swept displacement as though both were delivered output. Displacement describes geometric volume per unit time; leakage, clearance and operating conditions separate it from useful delivery. Request the compressor’s documented delivered capacity at the working discharge pressure. A rating at one pressure is not evidence of equal delivery at a higher pressure.

In a quote comparison, put rating basis, delivery pressure and continuous operating limit in separate columns. If any is absent, the correct entry is “not documented,” rather than an inferred conversion from horsepower. The DOE / Lawrence Berkeley National Laboratory sourcebook provides the system vocabulary and rating context.

Write a demand sheet before comparing compressors

Illustrative demand worksheet—replace with actual tool data
Tool / useLoaded flowRequired pressureMinutes on/off + concurrent use
Tool A, short repair burstsFrom tool manualFrom tool manualRecord on/off minutes; sometimes with B
Tool B, sustained operationFrom tool manualFrom tool manualRecord on/off minutes and simultaneous tools
Plasma cutterFrom cutter manualAt specified inlet conditionRecord cut sequence; include other users
Leaks / other demandMeasure or assessSystem-specificAssess continuing demand

Do not add average values whose underlying duty assumptions differ and call the total “continuous demand.” Conversely, summing every tool in a cabinet can oversize a system if they never run together. The useful number comes from an honest operating pattern, with a capacity plan for genuine peaks and any planned expansion.

Worked example: two tools running at once

Consider this hypothetical ten-minute work sequence. A sander consumes 12 CFM while loaded and runs for six minutes. An impact tool consumes 20 CFM while loaded and runs for one minute. Ignore leaks for this first calculation; both demands are expressed on the same free-air basis.

Average demand = Σ(loaded flow × time fraction)
(12 × 0.6) + (20 × 0.1) = 9.2 CFM

A continuously available 10 CFM supply appears adequate on average. But if the impact tool runs while the sander is running, the instantaneous demand is 32 CFM and the deficit is 22 CFM. During that one minute the system needs 22 cubic feet from storage. The 60-gallon / 30-psi example below supplies only about 16.4 cubic feet across its assumed usable band, so it cannot sustain that entire overlap. Rescheduling the burst changes the problem without changing either tool.

Now include the compressor’s permitted duty. If a hypothetical 10 CFM compressor can only be loaded for half of each manufacturer-defined cycle, multiplying 10 × 0.5 gives a rough long-period supply of 5 CFM. That falls below 9.2 CFM. This multiplication is a screening calculation, not permission to adopt arbitrary on/off intervals; the machine’s actual duty definition and cooling conditions control. CAGI’s sizing brief explains why intermittent and continuous demands need different treatment.

What the tank can—and cannot—do

CAGI’s air-storage paper explains how receiver volume and usable pressure difference provide a temporary reserve. A simplified illustrative calculation for a 60-gallon tank and a 30-psi usable pressure band gives (60 ÷ 7.48) × (30 ÷ 14.7) ≈ 16.4 cubic feet of additional free air. If demand exceeds supply by 5 CFM, that reserve covers roughly 3.3 minutes in this idealized calculation.

This is not a guaranteed tool run time. It assumes the stated pressure band, simplified temperature behavior and atmospheric reference; controls, losses and actual demand change the result. Do not alter safety valves or pressure limits to obtain a larger reserve. The important conclusion is that storage postpones a sustained deficit—it does not eliminate it.

Receiver reserve calculator: how long can a shortfall last?

The estimate below uses an isothermal ideal-gas balance with 14.7 psia atmospheric reference, a receiver starting at the upper pressure, and constant equivalent free-air supply and demand. It excludes extra piping volume, leaks and control delays. Enter existing documented operating pressures, not proposed changes to a pressure vessel or safety device. The lower receiver pressure must still leave adequate tool pressure after distribution losses.

Reserve (ft³) = [tank US gal ÷ 7.48052] × [(upper − lower) psi ÷ 14.7]
Time (min) = reserve ÷ (demand − supply) CFM
Example: 16.4 ft³ reserve; 3.27 minutes at a 5 CFM deficit.

The pressure difference can be calculated using two gauge pressures because the same atmospheric offset cancels. The 14.7 divisor remains absolute pressure. Do not divide by 90 psig or add atmospheric pressure to the pressure difference. At altitude or with materially different temperatures/reference conditions, this simplified estimate needs correction. The storage relationship is described by CAGI’s receiver-storage paper.

More reserve buys time; it does not close a continuing deficit

Receiver reserve time falls as the flow deficit growsFor a 60 US gallon tank and a 30 psi usable band: a 2 CFM deficit lasts 8.18 minutes, 5 CFM lasts 3.27 minutes, 10 CFM lasts 1.64 minutes and 20 CFM lasts 0.82 minutes. Calculated, not tested.Same tank. Same pressure band. Different shortfalls.2 CFM5 CFM10 CFM20 CFM8.18 min3.27 min1.64 min0.82 minCalculated reserve: 16.37 ft³ • Time = reserve ÷ deficit
Illustrative ideal-gas calculation using 60 US gal, a 30 psi usable band and 14.7 psia reference. Values describe net deficits, not total tool consumption. No compressor performance was measured.

Recovery uses the same mass balance in reverse. Replacing 16.4 cubic feet at 10 CFM, with no tools or leaks consuming air, takes about 1.64 minutes in this model. If a 6 CFM load continues, the net recharge is only 4 CFM and recovery takes about 4.1 minutes. Real compressor delivery may vary across the pressure band. A tank that appears to recover quickly during a break can still fall progressively behind during production.

Low pressure does not always mean a small compressor

A restrictive quick-connect, long undersized hose, dirty filter or regulator can reduce pressure at the tool. DOE’s compressed-air sourcebook recommends investigating pressure drops through the system under demand. Measuring only at the receiver can miss the problem entirely.

Before replacing the compressor, map the line and compare readings at appropriate points using the manufacturer’s safe test procedure. Have a qualified person investigate leaks, restrictions and controls. Increasing system pressure without addressing the cause can create new problems and does not establish that the tool receives the required flow.

Troubleshoot pressure loss

Observations to record before requesting service
Observed behavior under the same taskWhat it suggestsWhat to check next
Receiver remains high; tool pressure falls immediatelyRestriction between receiver and toolPressure difference across hose, coupling, regulator and filter under flow
Receiver and tool pressures decline together over several minutesDemand exceeds current supply or compressor delivery is impairedTimed load sequence, delivery data and service condition
Pressure fails only when a second tool startsPeak overlap exceeds delivery plus available reserveConcurrent demand and duration, not shift average alone
Flow was satisfactory before a filter/hose changeNew restriction, incorrect component or installation issueExact old/new parts and approved assembly
Compressor starts excessively or fails to recoverLeaks, controls or demand/capacity mismatch are possibilitiesQualified service assessment; do not adjust protection devices

Use these observations to guide troubleshooting; one gauge reading is not enough to identify the cause. Compare like-for-like operating conditions and use approved measurement points and procedures. A reading taken with the trigger released cannot show a flow-dependent restriction. Resolve the restriction or service fault before assuming another compressor is required.

Include air quality, duty and noise in the purchase

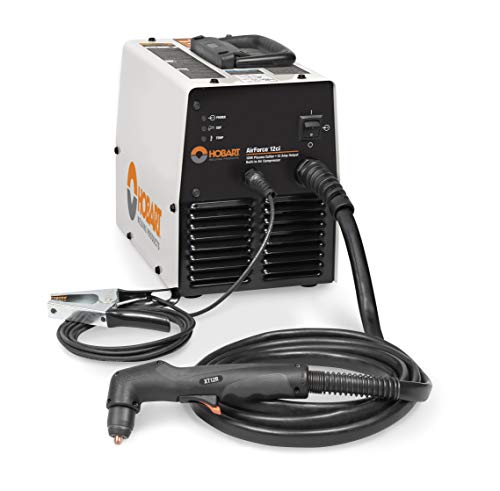

The compressor’s own duty rating matters when operation becomes sustained. So do the required air quality and environmental conditions. A system serving plasma cutting, painting or another quality-sensitive process needs the treatment specified for that application; an ordinary regulator bowl is not proof of adequate drying or oil removal.

Plan drainage, ventilation, service access and the electrical supply. Ask where noise is measured and under what conditions rather than comparing unlabeled decibel numbers. An installation that is difficult to maintain can become expensive even when the initial compressor price is low. For a cutter, use the plasma air-quality checklist.

Air compressor sizing questions

Will a larger tank make my sander run continuously?

Only if the compressor already supplies the required long-term flow within its operating limits. Otherwise, a larger receiver extends the time until the lower pressure threshold is reached. It can be useful for short bursts with enough recovery time; it cannot erase a continuing mass-flow deficit.

Can two tools with low “average CFM” overload the system?

Yes. Average consumption includes an assumed off-time. If both tools are held on together, use their loaded consumption. Ask the tool maker what averaging cycle the quoted number assumes, then replace that assumption with the actual workflow.

Why is the receiver pressure high while my tool feels weak?

A restriction can preserve upstream pressure while starving downstream flow. Conversely, low output may come from the tool itself. Record pressure during operation and compare the approved hose/coupling arrangement before blaming tank volume.

Can I split one supply between plasma cutting and lubricated air tools?

The branches may need different treatment. A line intentionally lubricated for an air tool is not automatically suitable for a plasma torch or coating process. Treat the branches as separate specifications and prevent cross-contamination. See plasma air quality, drying and pressure loss.

What to put in the quote request

  • Loaded demand and pressure for each actual tool.
  • The expected simultaneous operating pattern and longest sustained use.
  • Required air quality and any treatment specification.
  • Delivered compressor capacity at the required pressure, with rating method.
  • Duty rating, electrical requirements, maintenance and installed noise information.
  • Distribution route, pressure-drop allowance and service access.

Choose the system that satisfies that brief with documented performance. Do not use a universal multiplier in place of a demand assessment. If the job is uncertain, renting or measuring an existing setup can provide better inputs than buying a larger tank on speculation.
